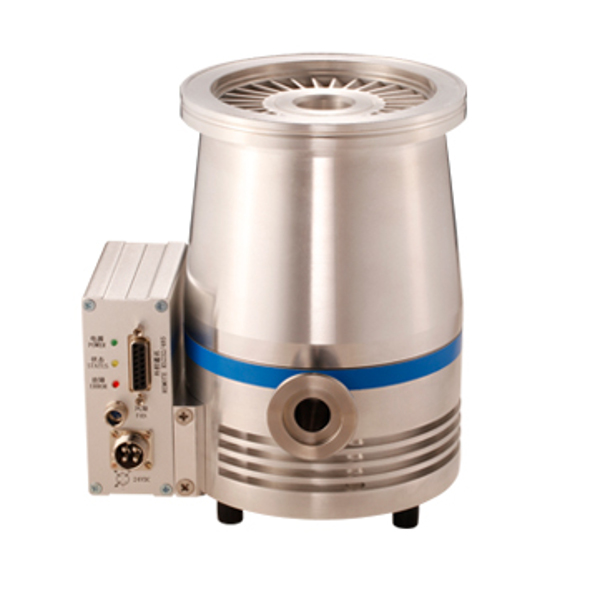

EVT-150E

The EVT series Turbo Molecular Vacuum Pumps are the top range from KYKY

Eurovacuum is the designated sales and service point for Turbo molecular pumps manufactured by KYKY Technology Development Ltd. from Beijing in China. These pumps are build for excelent quality. To proof there quality these pumps are supplied with a 18 month warranty, the best standard warranty in the business. The pumps are the ideal solution for applications requiring rugged reliable and proven hardware, due to this the they are oftenly used in applications like:

  • Furnaces and plants
  • Laser technology
  • Medicinal technology
  • Metallurgy
  • Space simulation
  • Vacuum coating
  • Semi-conductor production
  • Data storage

They are having the following advantage to the users:

  • 18 month warranty
  • Very good price/quality level
  • High pumping speed
  • Low noise level
  • Wide range of accessories available for easy adaptation

Part Number

Ordering information Art.No.
Turbo drag pump EVT-150E-LF with DN 100 ISO-K flange (excl. control unit & cable) 801502
Turbo drag pump EVT-150E-CF with DN 100 CF flange (excl. control unit & cable) 801503
TC-100 onboard controller 800042
TCP-100 controller and power supply 800041
Controller cable 2,5 m 801011
Controller cable 5 m 801012
Controller cable 10 m 801013
Controller cable 20 m 801014
Controller cable other lengths on request

Specifications

Specification Unit EVT-150E-LF EVT-150E-CF
Pump type Compound/Drag Compound/Drag
Inlet Flange DN 100 ISO-K DN 100 CF
Fore vacuum Flange DN 25 KF DN 25 KF
Pumping speed (Air) l/s 150 150
Fore vacuum max. mbar 5 5
Rotation Speed rpm 51.000 51.000
H2 Compression Ratio > 6x10E3 > 6x10E3
N2 Compression Ratio > 1x10E7 > 1x10E7
Ultimate Vacuum mbar < 6x10E-8 < 6x10E-9
Gas throughput at full speed sccm 35 30
Run up Time min < 2 < 2
Control Unit TC100/TCP100 TC100/TCP100
Input voltage 24VDC / 100W 24VDC / 100W
Cooling medium Air (water option) Air (water option)
Max. magnetic field mT < 3 < 3
Vibration µm < 0,1 < 0,1
Bearing type Ceramic Grease Ceramic Grease
Operating Orientation Any Any
Weight Pump/Controller kg 6,0 / 1,0 6,0 / 1,0
Communication modul RS-232 (RS-485) RS-232 (RS-485)
Controller dimensions lxwxh mm 135x130x70 135x130x70

Pumping speed curve

pump-down-curve-evt-150e

Dimensions

drawing-evt-150e

^
