Centering ring with Baffle

INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10E-9 mbar l/s.


  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • 2011/65/EU RoHS compliant

Part Number

Ordering Information Art.No.
Centering ring with baffle DN 25 KF 211-113

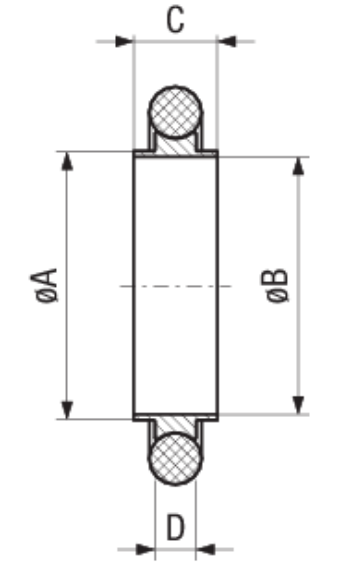

Type DN 20-25 ISO-KF
Dimension A 26 mm
Dimension B 25 mm
Dimension C 8 mm
Ring Stainless Steel 303 / 1.4305
Baffle Stainless Steel 301 / 1.4310
Seal FPM
