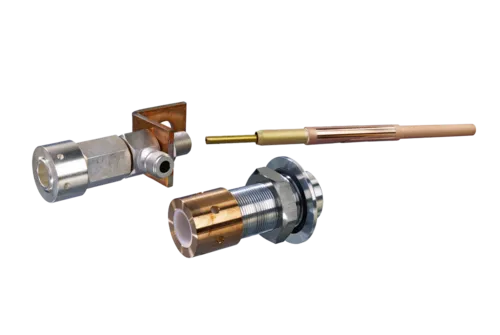

High Current Feedthrough
Eurovacuum offers economical priced ISO-KF flange feedthroughs which can be found in all standard vacuum applications all over the world for many years. In addition to this feedthroughs a choice of connectors for vacuum and atmosphere side of vacuum chamber is configured.
For UHV applications CF flanged feedthroughs are available in different sizes and technical specifications
BENEFITS
- 2011/65/EU RoHS compliant
- Selection of three electrodes
- Slide into mounted feedthrough
- Corrent connetion with water cooling
Part number
| Type | Part number | |
|---|---|---|
| Angle electrode | 1 Feedthrough high current | 214-143 |
| High current feedthrough DN 40 ISO-KF | 1 Feedthrough high current | 214-141 |
| Straight electrode | 1 Feedthrough high current | 214-142 |
| Water and current connection | 1 Feedthrough high current | 214-145 |
Specifications
| 1 Feedthrough high current | ||
| Vacuum connection | DN40 ISO-KF | |
| Number of feedthroughs | 1 | |
| Voltage | V | 100 |
| Current | A | 250/1500 1) |
| Tightness | mbar•l/s | 1 x 10-9 |
| Pressure (absolute) | 1 x 10-8 mbar … 2.5 bar (max. 10 bar with external centering ring) |
|
| Bakeout temperature | °C | 110 |
| Housing | aluminum | |
| Insulator | thermoplast and thermoset | |
| Seal | FPM |
1) With water-cooling
