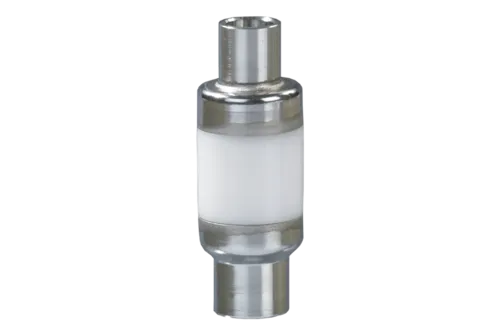

Metal Ceramic Connections
BENEFITS
- High grade materials allow repeated bakings up to 400° C
- 2011/65/EU RoHS compliant
Part number
| Type | Part number | |
|---|---|---|
| UMK 002 Metal-ceramic | 3 kV | 214-161 |
| UMK 006 Metal-ceramic | 2 kV | 214-162 |
| UMK 106 Metal-ceramic | 5 kV | 214-163 |
| UMK 112 Metal-ceramic | 10 kV | 214-164 |
| 1) Based on VDE 0110 for air and surface-leakage in atmosphere on both sides. | ||
| Higher values up to factor two are admissible in pressures <10-4 mbar. |
Specifications
| 3 kV |
2 kV
|
5 kV | 10 kV | ||
| Voltage 1) | 3 kV | 2 kV | 5 kV | 10 kV | |
| Insulator | Al2O3 | Al2O3 | Al2O3 | Al2O3 | |
| Connection | |||||
| a | Fe-Ni | Fe-Co | Fe-Co | Fe-Ni | |
| b | Fe-Ni | stainless steel 304/1.4301 |
stainless steel 304/1.4301 |
stainless steel 304/1.4301 |
|
| Bakeout temperature | °C | 400 | 400 | 400 | 400 |
| Tightness | mbar•l/s | 5 x 10-11 | 5 x 10-11 | 5 x 10-11 | 5 x 10-11 |
| Weight | g | 5 | 12 | 25 | 90 |
