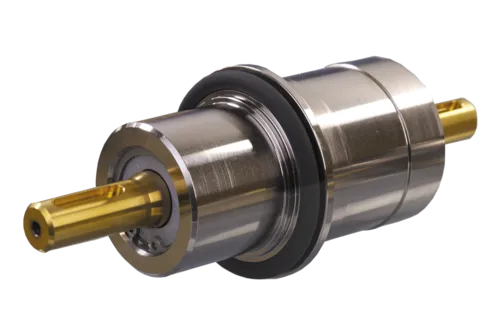

Rotary Feedthrough ISO-KF/ISO-K
Eurovacuum’s huge variety of mechanical feedthroughs offers the right device for all demanding applications, no matter if it serves e.g. in coating application chambers or in your applied research project under laboratory conditions.
The available flange designs ISO-KF/ISO-K and CF corresponds to our fitting line. All feedthroughs are suited to work in vacuum systems with leak rates up to 1 x 10-9 mbar•l/s. For UHV an all metal designed feedthrough is also available.
BENEFITS
- For transmitting high torque
- With FPM shaft seal and ball bearings
- 2011/65/EU RoHS compliant
Part number
| Type | Part number | |
|---|---|---|
| FRH016-H Rotary feedthrough DN 16 ISO-KF | FRH016-H | 214-300 |
| FRH025-H Rotary feedtrough DN 25 ISO-KF | FRH025-H | 214-302 |
| FRH040-H Rotary feedtrough DN 40 ISO-KF | FRH040-H | 214-304 |
| FRH063-H Rotary feedthrough DN 63 ISO-K | FRH063-H | 214-306 |
Specifications
| FRH016-H |
FRH025-H
|
FRH040-H | FRH063-H | ||
| Vacuum connection | DN16 ISO-KF | DN25 ISO-KF | DN40 ISO-KF | DN63 ISO-KF | |
| Feedthrough/seal | FPM | FPM | FPM | FPM | |
| Shaft measure | mm | Ø5 | Ø8 | Ø12 | Ø20 |
| Transferable torque | nm | 1.5 | 6 | 25 | 100 |
| Rotational speed (1) | RPM | 1500 | 1000 | 750 | 500 |
| Idling torque under vacuum | N•cm | ≤ 3 | ≤ 4 | ≤ 5 | ≤ 10 |
| Starting torque under vacuum | N•cm | ≤ 6 | ≤ 8 | ≤ 10 | ≤ 20 |
| Shaft load vacuum sided | |||||
| Radial force | N | 60 | 150 | 250 | 500 |
| Axial force | N | 30 | 50 | 60 | 100 |
| Service life | Revolutions | 20 000 000 | 20 000 000 | 20 000 000 | 10 000 000 |
| Tightness, static | mbar•l/s | 1 x 10-9 | 1 x 10-9 | 1 x 10-9 | 1 x 10-9 |
| Pressure (absolute) | 1 x 10-9 mbar … 1 bar | 1 x 10-9 mbar … 1 bar | 1 x 10-9 mbar … 1 bar | 1 x 10-9 mbar … 1 bar | |
| Operating temperature | °C | 50 | 50 | 50 | 50 |
| Bakeout temperature | °C | 110 | 110 | 110 | 110 |
| Materials exposed to process media | stainless steel 420/1.4021, aluminum 6082, elastomer FPM | stainless steel 420/1.4021, aluminum 6082, elastomer FPM | stainless steel 420/1.4021, aluminum 6082, elastomer FPM | stainless steel 420/1.4021, aluminum 6082, elastomer FPM | |
| Weight | kg | 0.1 | 0.2 | 0.6 | 2 |
| (1) When a reduced service life is acceptable, the rotational can be increased by up to a factor of two | ||
| (2) relevant to DN63 ISO-K: | ||
| Centering ring not included in delivery, CR aluminum Part No. 212-251/ FPM Stainless steel Part No. 212-281 . |
