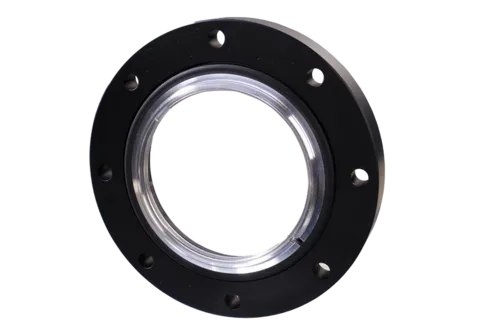

Viewport ISO-F
INFICON offers a wide range of industrial approved viewports which fit into all applications where a view port is needed.
Viewports are available in:
- borosilicate glass
Available flange designs ISO-KF/ISO-K/ISO-F and CF corresponds to our fitting line.
BENEFITS
- Wide viewing angle
- 2011/65/EU RoHS compliant
Part number
| Type | Part number | |
|---|---|---|
| Protection glass set | DN 160 ISO-F | 214-048 |
| Protection glass set DN 100 ISO-F, 5 pcs | DN 100 ISO-F | 214-047 |
| Protection glass set DN 63 ISO-F, 5 pcs | DN 63 ISO-F | 214-046 |
| Sight glass DN 100 ISO-F | DN 100 ISO-F | 214-017 |
| Sight glass DN 160 ISO-F | DN 160 ISO-F | 214-018 |
| Sight glass DN 63 ISO-F | DN 63 ISO-F | 214-016 |
Specifications
| DN63 ISO-F |
DN100 ISO-F
|
DN160 ISO-F | ||
| Vacuum connection | DN63 ISO-F | DN100 ISO-F | DN160 ISO-F | |
| Material | ||||
| Window | borosilicate glass | borosilicate glass | borosilicate glass | |
| Seal | FPM | FPM | FPM | |
| Flange | black anodized aluminum | black anodized aluminum | black anodized aluminum | |
| Centering ring | aluminum | aluminum | aluminum | |
| Snap ring | stainless steel 304/1.4301 | stainless steel 304/1.4301 | stainless steel 304/1.4301 | |
| Bakeout temperature | °C | 150 | 150 | 150 |
| Tightness | mbar•l/s | 1 × 10-9 | 1 × 10-9 | 1 × 10-9 |
| Pressure (absolute) | 1 × 10-8 mbar … 2 bar | 1 × 10-8 mbar … 2 bar | 1 × 10-8 mbar … 2 bar | |
| Max. at 150 °C | bar | 1 | 1 | 1 |
| Thickness | ||||
| Window | mm | 7.5 | 11 | 15 |
| Protective glass | mm | 2.3 | 2.3 | 2.3 |
| Weight | kg | 0.8 | 1.4 | 3 |
