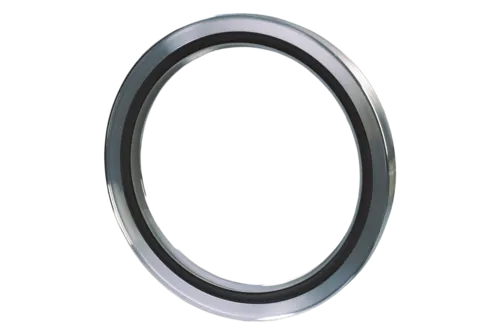

Viewport ISO-K
INFICON offers a wide range of industrial approved viewports which fit into all applications where a view port is needed.
Viewports are available in:
- borosilicate glass
Available flange designs ISO-KF/ISO-K/ISO-F and CF corresponds to our fitting line.
BENEFITS
- Wide viewing angle
- 2011/65/EU RoHS compliant
Part number
| Type | Part number | |
|---|---|---|
| Sight glass DN 100 ISO-K | DN 100 ISO-K | 214-007 |
| Sight glass DN 160 ISO-K | DN 160 ISO-K | 214-008 |
| Sight glass DN 63 ISO-K | DN 63 ISO-K | 214-006 |
Specifications
| DN63 ISO-K |
DN100 ISO-K
|
DN160 ISO-K | ||
| Vacuum connection | DN63 ISO-K | DN100 ISO-K | DN160 ISO-K | |
| Window | borosilicate glass | borosilicate glass | borosilicate glass | |
| Seal | FPM | FPM | FPM | |
| Flange | aluminum | aluminum | aluminum | |
| Bakeout temperature | °C | 150 | 150 | 150 |
| Tightness | mbar•l/s | 1 x 10-9 | 1 x 10-9 | 1 x 10-9 |
| Pressure (absolute) | 1 x 10-8 mbar … 2 bar | 1 x 10-8 mbar … 2 bar | 1 x 10-8 mbar … 2 bar | |
| Max. at 150 °C | bar | 1 | 1 | 1 |
| Window thickness | mm | 6 | 8 | 10 |
| Weight | kg | 0.2 | 0.3 | 0.4 |
