Large Quantity Dust Filters with BSP-connection

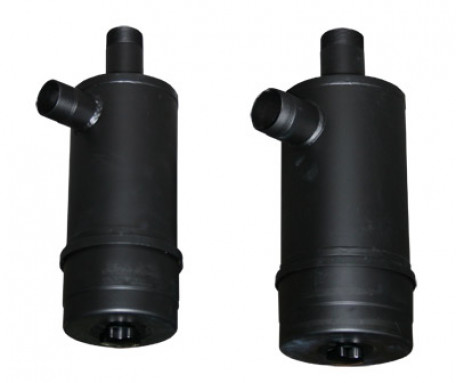

Eurovacuum Large Quantity Filters are two stage filter in compact design. They are suitable for heavy duty applications, for example: earth moving machines, street working machines, building trucks, agricultural machines, etc. The filters can be mounted horizontal and vertical. The high quality of the paint and manufacturing technologies allows the housing to resist the worse environmental conditions. Temperature for working at continuous use are -40°C till +100°C.
Part Number
| Ordering Information | LQ-filters |
|---|---|
| LQ-dust filter G 1-1/4″ | 777702 |
| LQ-dust filter G 1-1/2″ | 777703 |
| LQ-dust filter G 2″ | 777704 |
| LQ-dust filter G 3″ | 777705 |
| LQ-dust filter G 4″ | 777706 |
| Spare cartridge LQ filter G 1-1/4″ | 777712 |
| Spare cartridge LQ filter G 1-1/2″ | 777713 |
| Spare cartridge LQ filter G 2″ | 777714 |
| Spare cartridge LQ filter G 3″ | 777715 |
| Spare cartridge LQ filter G 4″ | 777716 |
| Wall mounting bracket LQ-filter G1-1/4″ | 777722 |
| Wall mounting bracket LQ-filter G1-1/2″ | 777723 |
| Wall mounting bracket LQ-filter G 2″ | 777724 |
| Wall mounting bracket LQ-filter G 3″ | 777725 |
| Wall mounting bracket LQ-filter G 4″ | 777726 |
Specifications
| Technical Data | LQ-filters | |
|---|---|---|
| Available flange sizes | G (BSP) | 1¼” – 1½” – 2” – 3” & 4” |
| Pressure difference | mbar | ∆15 |
| Admissible ambient temp. | °C | -40 to +100 |
| Flow rate max. | ||
| – G 1-1/4″ | m3/h | 120 |
| – G 1-1/2″ | m3/h | 170 |
| – G 2″ | m3/h | 240 |
| – G 3″ | m3/h | 440 |
| – G 4″ | m3/h | 730 |
Dimensions
Dimensions in mm
| Dimensions | A | B | C | D | E | G | H |
|---|---|---|---|---|---|---|---|
| LQ-dust filter G 1-1/4″ | 132 | 146 | 126 | G 1-1/4″ | 81 | 129 | 312 |
| LQ-dust filter G 1-1/2″ | 132 | 146 | 126 | G 1-1/2″ | 81 | 129 | 312 |
| LQ-dust filter G 2″ | 165 | 178 | 156 | G 2″ | 91 | 144 | 341 |
| LQ-dust filter G 3″ | 203 | 220 | 157 | G 3″ | 102 | 172 | 453 |
| LQ-dust filter G 4″ | 262 | 276 | 225 | G 4″ | 128 | 208 | 493 |
