IRwin Mobile Methane Leak Detector
IRwin Methane Leak Detector

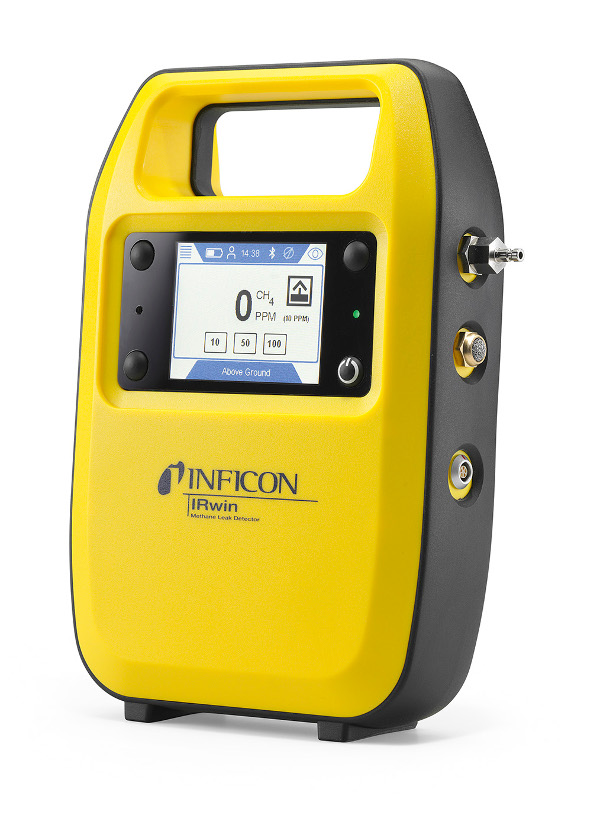

IRwin® Methane Leak Detector is an innovative, portable natural gas detector for easy gas pipe survey and gas leak detection. It is developed in accordance with many national directives, such as the DVGW (Deutscher Verband des Gas- und Wasserfaches) directive. The IRwin SX-models are certified for use in Zone 0, classification Ex II 1G, Ex ia IIC T3 Ga.
The integrated proprietary infrared sensor system (patents pending) has a very short reaction and recovery time. The system prevents false leak alarms and ensures correct and fast leak evaluation. IRwin® is able to measure methane according to the traditional operating modes required by DVGW G 465-4, such as “Inspection above-ground” and “Measuring bar holes”.The range is from 1 ppm to 100 Vol. %.
IRwin® Methane Leak Detector – together with an innovative probe system specially designed for natural gas leak detection – allows for easy and effective survey of gas pipelines. The Mono-wheeler Carpet Probe (patent pending), with locking mechanism, has been developed for maximum convenience in all survey situations (under cars, over fences, on gas surface boxes etc).
Features
- Methane-specific measurement with IR-technology
- 100% distinction between natural gas and marsh gas
- No manual switching through universal measuring mode (1ppm – 100 Vol % for CH4)
- High sensitivity, quick reaction and short recovery time thanks to the integrated proprietary IR sensor technology
- Water protection IP65
- Measurements possible even in extreme environments because of its robust housing
- Integrated GPS chip allows reliable location tracking
- Wireless communication system for easy data transfer
- Light and easy to move around for maximum ergonomics
- Modular, light and innovative accessories
Typical Applications
Natural gas pipelines survey
Part Number
| IRwin S | |
|---|---|
| Part Number | Description |
| 580-000 | IRwin S (Methane, Carbon dioxide) |
| 580-001 | IRwin S (Methane, Carbon dioxide), Kit |
| IRwin SX | |
|---|---|
| Part Number | Description |
| 580-010 | IRwin SX (Methane, Carbon dioxide) <<avail. 07/2016>> |
| 580-011 | IRwin SX (Methane, Carbon dioxide), Kit <<avail. 07/2016>> |
| IRwin SXT | |
|---|---|
| Part Number | Description |
| 580-015 | IRwin SXT (Methane, Carbon dioxide, Oxygen, Hydrogen Sulfide, Carbon monoxide) <<avail. 07/2016>> |
| 580-016 | IRwin SXT (Methane, Carbon dioxide, Oxygen, Hydrogen Sulfide, Carbon monoxide), Kit <<avail. 07/2016>> |
| IRwin SXG | |
|---|---|
| Part Number | Description |
| 580-020 | IRwin SXG (Methane, Carbon dioxide, Ethane, Propane, Butane) <<avail.2016>> |
| 580-021 | IRwin SXG (Methane, Carbon dioxide, Ethane, Propane, Butane), Kit <<avail.2016>> |
| IRwin SXGT | |
|---|---|
| Part Number | Description |
| 580-030 | IRwin SXGT (Methane, Carbon dioxide, Ethane, Propane, Butane, Oxygen, Hydrogen Sulfide, Carbon monoxide) <<avail.2016>> |
| 580-031 | IRwin SXGT (Methane, Carbon dioxide, Ethane, Propane, Butane, Oxygen, Hydrogen Sulfide, Carbon monoxide), Kit <<avail. 2016>> |
Accessories
| IRwin S | |
|---|---|
| Part Number | Description |
| 580-100 | Hand probe |
| 580-210 | Mono-wheeler Carpet Probe (patent pending) |
| 580-211 | Carpet |
| 580-300 | Bell Probe |
| 580-160 | Extension Rod, 150mm |
| 580-301 | Bell |
| 580-150 | Rod |
| 580-402 | Bag incl. Shoulder strap |
| 580-400 | Harness |
| 580-450 | Transport Case |
| 580-700 | Filter-kit |
| IRwin SX | |
|---|---|
| Part Number | Description |
| 580-100 | Hand probe |
| 580-210 | Mono-wheeler Carpet Probe (patent pending) |
| 580-211 | Carpet |
| 580-300 | Bell Probe |
| 580-160 | Extension Rod, 150mm |
| 580-301 | Bell |
| 580-150 | Rod |
| 580-402 | Bag incl. Shoulder strap |
| 580-400 | Harness |
| 580-450 | Transport Case |
| 580-700 | Filter-kit |
| IRwin SXT | |
|---|---|
| Part Number | Description |
| 580-100 | Hand probe |
| 580-210 | Mono-wheeler Carpet Probe (patent pending) |
| 580-211 | Carpet |
| 580-300 | Bell Probe |
| 580-160 | Extension Rod, 150mm |
| 580-301 | Bell |
| 580-150 | Rod |
| 580-402 | Bag incl. Shoulder strap |
| 580-400 | Harness |
| 580-450 | Transport Case |
| 580-700 | Filter-kit |
| IRwin SXG | |
|---|---|
| Part Number | Description |
| 580-100 | Hand probe |
| 580-210 | Mono-wheeler Carpet Probe (patent pending) |
| 580-211 | Carpet |
| 580-300 | Bell Probe |
| 580-160 | Extension Rod, 150mm |
| 580-301 | Bell |
| 580-150 | Rod |
| 580-402 | Bag incl. Shoulder strap |
| 580-400 | Harness |
| 580-450 | Transport Case |
| 580-700 | Filter-kit |
| IRwin SXGT | |
|---|---|
| Part Number | Description |
| 580-100 | Hand probe |
| 580-210 | Mono-wheeler Carpet Probe (patent pending) |
| 580-211 | Carpet |
| 580-300 | Bell Probe |
| 580-160 | Extension Rod, 150mm |
| 580-301 | Bell |
| 580-150 | Rod |
| 580-402 | Bag incl. Shoulder strap |
| 580-400 | Harness |
| 580-450 | Transport Case |
| 580-700 | Filter-kit |
Spare Parts
| IRwin S | |
|---|---|
| Part Number | Description |
| 580-602 | Car adapter for charging, 12 Volt |
| 580-603 | Adapter for charging, 220 Volt |
| 580-701 | Mat repair kit |
| 581-167 | Battery (replaceable at authorized service centers only) |
| IRwin SX | |
|---|---|
| Part Number | Description |
| 580-602 | Car adapter for charging, 12 Volt |
| 580-603 | Adapter for charging, 220 Volt |
| 580-701 | Mat repair kit |
| 581-167 | Battery (replaceable at authorized service centers only) |
| IRwin SXT | |
|---|---|
| Part Number | Description |
| 580-602 | Car adapter for charging, 12 Volt |
| 580-603 | Adapter for charging, 220 Volt |
| 580-701 | Mat repair kit |
| 581-167 | Battery (replaceable at authorized service centers only) |
| IRwin SXG | |
|---|---|
| Part Number | Description |
| 580-602 | Car adapter for charging, 12 Volt |
| 580-603 | Adapter for charging, 220 Volt |
| 580-701 | Mat repair kit |
| 581-167 | Battery (replaceable at authorized service centers only) |
| IRwin SXGT | |
|---|---|
| Part Number | Description |
| 580-602 | Car adapter for charging, 12 Volt |
| 580-603 | Adapter for charging, 220 Volt |
| 580-701 | Mat repair kit |
| 581-167 | Battery (replaceable at authorized service centers only) |
Specifications
| Type | IRwin S | IRwin SX | IRwin SXT | IRwin SXG | IRwin SXGT | |
|---|---|---|---|---|---|---|
| Ex classification | – | ATEX: Ex II 1G, Ex ia IIC T3 Ga | ATEX: Ex II 1G, Ex ia IIC T3 Ga | ATEX: Ex II 1G, Ex ia IIC T3 Ga | ATEX: Ex II 1G, Ex ia IIC T3 Ga | |
| Detectable Gases | ||||||
| Methane | CH4 | CH4 | CH4 | CH4 | CH4 | |
| Carbon dioxide | CO2 | CO2 | CO2 | CO2 | CO2 | |
| Ethane | – | C2H6 | C2H6 | |||
| Propane | – | C3H8 | C3H8 | |||
| Butane | – | C4H10 | C4H10 | |||
| Carbon monoxide | – | CO | CO | |||
| Oxygen | – | O2 | O2 | |||
| Hydrogen Sulfide | – | H2S | H2S | |||
| Sensitivity | 1 ppm to 100% CH4 | 1 ppm to 100% CH4 | 1 ppm to 100% CH4 | 1 ppm to 100% CH4 | 1 ppm to 100% CH4 | |
| Operating time | min. 8h | min. 8h | min. 8h | min. 8h | min. 8h | |
| Charging time | 4 h (3 h fast charge) | 4 h (3 h fast charge) | 4 h (3 h fast charge) | 4 h (3 h fast charge) | 4 h (3 h fast charge) | |
| Supply | Lithium Ion battery | Lithium Ion battery | Lithium Ion battery | Lithium Ion battery | Lithium Ion battery | |
| IP protection | IP54 | IP54 | IP54 | IP54 | IP54 | |
| Operating temperature | -20 to +50°C (-4 to 122°F) | -20 to +50°C (-4 to 122°F) | -15 to +40°C (5 to 104°F) | -20 to +50°C (-4 to 122°F) | -15 to +40°C (5 to 104°F) | |
| Storage temperature | -25 to +50°C (-13 to 122°F) | -25 to +50°C (-13 to 122°F) | -25 to +50°C (-13 to 122°F) | -25 to +50°C (-13 to 122°F) | -25 to +50°C (-13 to 122°F) | |
| Air humidity | max. 95% RH, not condensing | max. 95% RH, not condensing | max. 95% RH, not condensing | max. 95% RH, not condensing | max. 95% RH, not condensing | |
| Dimensions (W x H x D) | 197 x 256 x 62 mm (7.7 x 10 x 2.4 in.) | 197 x 256 x 62 mm (7.7 x 10 x 2.4 in.) | 197 x 256 x 62 mm (7.7 x 10 x 2.4 in.) | 197 x 256 x 62 mm (7.7 x 10 x 2.4 in.) | 197 x 256 x 62 mm (7.7 x 10 x 2.4 in.) | |
| Weight | ||||||
| Instrument | ca. 1.4 kg (3 lb.) | ca. 1.6 kg (3.5 lb.) | ca. 1.6 kg (3.5 lb.) | ca. 1.6 kg (3.5 lb.) | ca. 1.6 kg (3.5 lb.) | |
| Instrument & probe system | ca. 2.7 kg (6 lb.) | ca. 2.9 kg (6.3 lb.) | ca. 2.9 kg (6.3 lb.) | ca. 2.9 kg (6.3 lb.) | ca. 2.9 kg (6.3 lb.) | |
