SemiQCM® CR Sensors for Precursor Monitoring

Protect and Grow Your Profit with Precision Rate and Thickness Monitoring

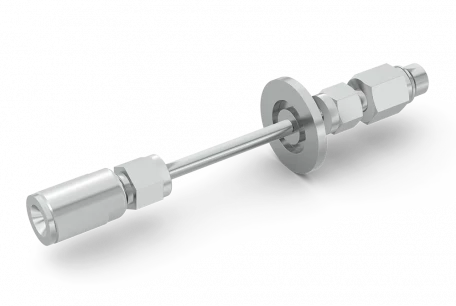

The SemiQCM CR sensor is a chemically inert sensor that can be installed in some of the harshest CVD or ALD chambers. SemiQCM CR is one component of a system for precursor monitoring, with the other components being an IMM-200 and FabGuard (version 19.12.00-a or higher).

Semi Process Monitoring can be used in semiconductor applications for endpoint detection and fault elimination by monitoring the amount of precursor in the foreline or chamber exhaust. The use of an in situ QCM provides affordable process monitoring and improved semiconductor process profitability.

The failure to deliver precursor to a wafer can be detected in as little as one wafer.

FEATURES

  • QCM data monitored at 10 Hz
  • FabGuard correlates QCM data to tool state and process step
  • Precise measurement of deposition or etch rates
  • Sensitivity & precision for sub-monolayer thickness measurement

BENEFITS

  • Real-time, in situ process monitoring
  • Prevent over-etching, identify chamber clean end point
  • Identify equipment or process state fault

TYPICAL APPLICATIONS

  • Semiconductor Manufacturing

Specifications

Maximum Temperature 200°C
Sensor Head Size (maximum envelope) 23.9 mm O.D. x 29.2 mm (0.94 in. O.D. x 1.15 in.)
Sensor Length (in vacuum) 50–150 mm (1.97–5.91 in.)
Mounting Feedthrough ISO KF/CF flange
Materials
Body and Holder Aluminum
Springs Beryllium nickel
Coax Line 6.4 mm (0.250 in.) O.D., nickel 625
Other Mechanical Parts Nickel 200, aluminum, or nickel C276
Insulators >96% Al2O3 in vacuum: Teflon® used elsewhere
Wire Ni in vacuum, Ni-plated Cu elsewhere
Braze Vacuum-process high-temperature NiCr alloy
Crystal 14.0 mm (0.551 in.) diameter

Part numbers

Part Number Description
750-7053-G1S 8 mm CR Crystal Holder Assembly with Alloy Crystal Installed
750-7053-G2S 8 mm CR Crystal Holder Assembly with Alumina Crystal Installed
750-7053-G3S 8 mm CR Crystal Holder Assembly with Yttria Crystal Installed
750-7055-G1S Crystal Holder, Finger Spring, and Retainer Spring Spare Assembly
750-1089-G10 SENSOR CRYSALS, 6 MHZ, ALLOY, 8 mm, 10 crystals
750-1127-G5 SENSOR CRYSTALS, 6 MHz, ALUMINA, 8 mm, 5 crystals
750-1128-G5 SENSOR CRYSALS, 6 MHZ, YTTRIA, 8 mm, 5 crystals

Spare parts

Part Number Description
750-7055-G1S Crystal Holder, Finger Spring, and Retainer Spring Spare Assembly
^
