EVDR-V060
The EVDR-V060 Oil free rotary vane Vacuum pump
The EVDR vacuum pumps are able to run 24 hours a day and specially suited for harsh industrial applications. They are supplied with self-lubricated long life graphite vanes to insure a long time between service, combined with the easy accessible service of the pump, this results in a very short service down time for the EVDR-series. Due to its reliability and Oil free operation the pump is often used in applications like:
- Vacuum packaging
- Degassing of materials
- Drying
- Holding and/or lifting
- Evacuation
- Forming or laminating
- Vacuum toilet systems
Part Number
| Ordering information | Art.No. |
|---|---|
| EVDR-V060-3; 3 phase; 400V; 50Hz / 460V; 60Hz | 646060 |
Specifications
| Specification | Unit | 50 Hz | 60 Hz |
|---|---|---|---|
| Nominal displacement | m3/h | 60 | 72 |
| Ultimate vacuum level | mbar | 150 | 150 |
| Motor power | kW | 2,2 | 2,6 |
| Nominal speed | rpm | 1420 | 1700 |
| Noise level | dB(A) | 71 | 73 |
| Weight approx | kg | 70 | 70 |
| Cooling | medium | air | air |
| Admissible ambient temperature | °C | 0-40 | 0-40 |
| Connection inlet | G(BSP) | 1″ | 1″ |
| Connection outlet | G(BSP) | 1″ | 1″ |
Accessoires
| Accessoires | Art.No. |
|---|---|
| Inlet dust filter with paper cartridge G 1″ | 04800 |
| Non return valve | 640095 |

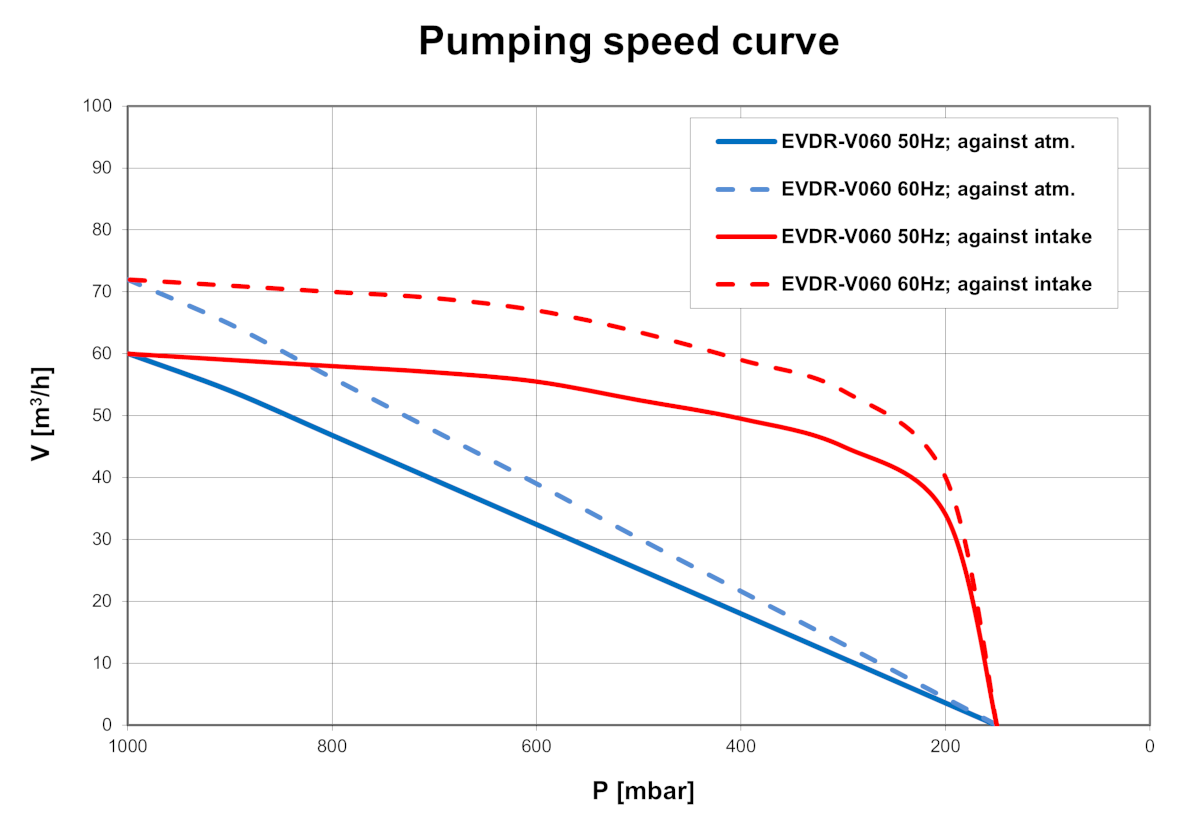

Pumping speed curve

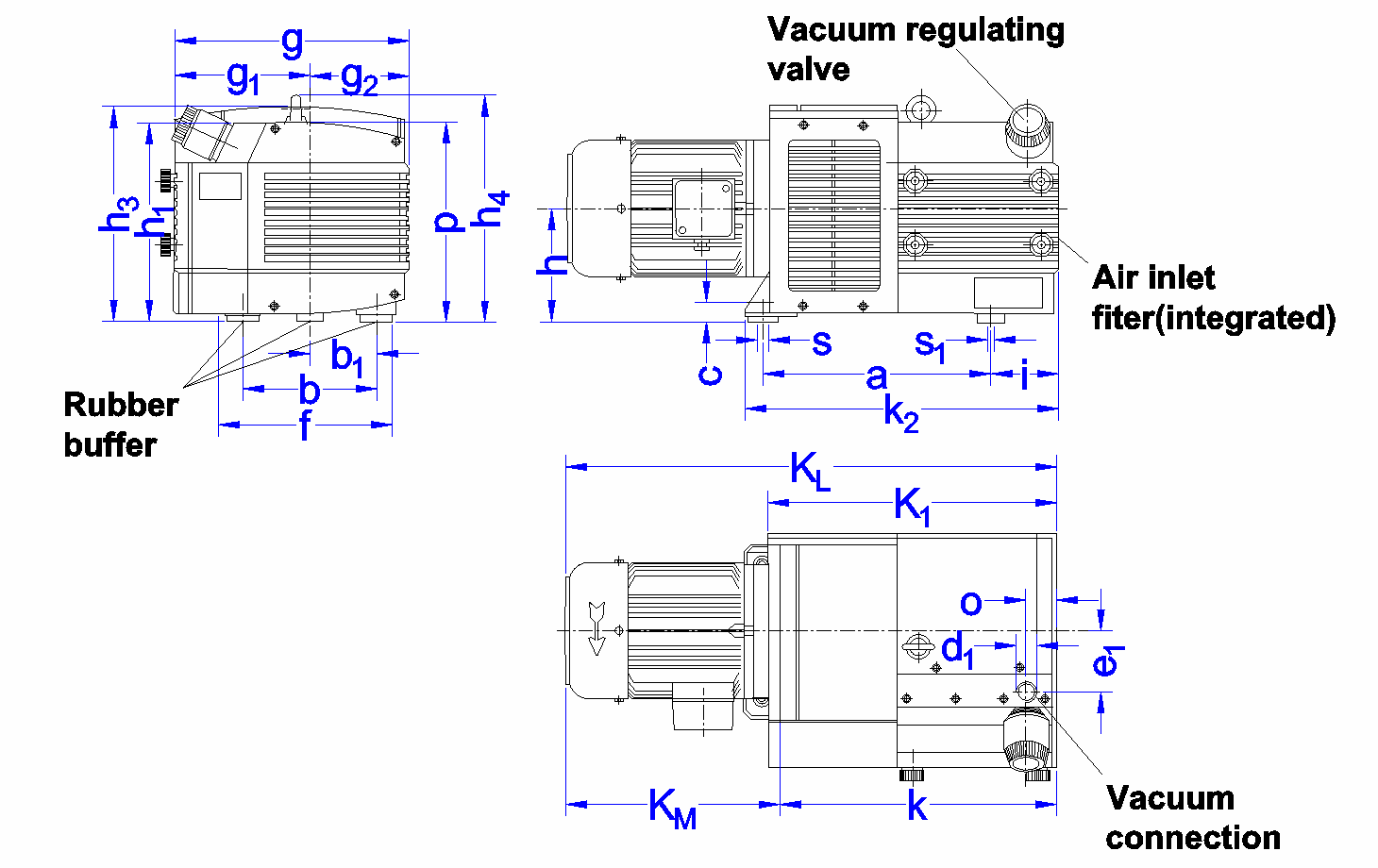

Dimensions
| Dimensions (mm) | a | b | b1 | c | d1 | e1 | f | g |
|---|---|---|---|---|---|---|---|---|
| EVDR-V060 | 327 | 190 | 95 | 33 | G1″ | 65 | 235 | 335 |
| g1 | g2 | h | h1 | h3 | h4 | l | k | |
| 189 | 150 | 161 | 275 | 314 | 331 | 93.5 | 401 | |
| k1 | k2 | km | kl | o | p | ∅s | s1 | |
| 419 | 451 | 330 | 728,5 | 49,5 | 289 | 12 | M8 |
