EV series
The EV-series are robust vacuum pump for industrial use.
Eurovacuum EV-series pumps are Oil Recirculation, Single Stage, Air-Cooled and Direct Driven. They are compact in design- Reliable & Durable- Easy to maintain and operate. Easy installation due to air-cooling without any cooling water requirements. The pumps are direct driven, so they do not require belts. With the integral exhaust filter unit the discharged Air is 99,9% oil free and quite in operation.
Operating principle
The Oil Sealed Rotary Vane Pump operates according to the rotary vane principal. The rotor is eccentrically positioned in the pump cylinder and has machined slots for sliding vanes. The centrifugal force of the rotation pushed vanes out these slots and towards the wall of the cylinder. The gas enters the vacuum pump inlet then passes through a built-in anti-suck valve that prevents the pump from rotating backwards and into the cylinder. The gas is compressed and pushed out through the exhaust opening located between the pump housing and exhaust box. The oil is feeding consistently to cylinder from oil sump for sealing and lubrication, and collects through oil exhaust filter in the bottom of the oil exhaust separator chamber and returns to the pump.
EV-series product line
-
EV-0008
8 m3/h
2 mbar
0,35 kW -
EV-0010
10 m3/h
2 mbar
0,4 kW -
EV-0016
16 m3/h
2 mbar
0,75 kW -
EV-0020C
16 m3/h
2 mbar
0,6 kW -
EV-0021
21 m3/h
2 mbar
0,9 kW -
EV-0030
30 m3/h
0,1 mbar
0,9 kW -
EV-0040
40 m3/h
0,1 mbar
1,1 kW -
EV-0063
63 m3/h
0,1 mbar
1,5 kW -
EV-0100
100 m3/h
0,1 mbar
2,2 kW -
EV-0160
160 m3/h
0,1 mbar
3,7 kW -
EV-0215
215 m3/h
0,1 mbar
5,5 kW -
EV-0250
250 m3/h
0,1 mbar
5,5 kW -
EV-0300
300 m3/h
0,1 mbar
7,5 kW -

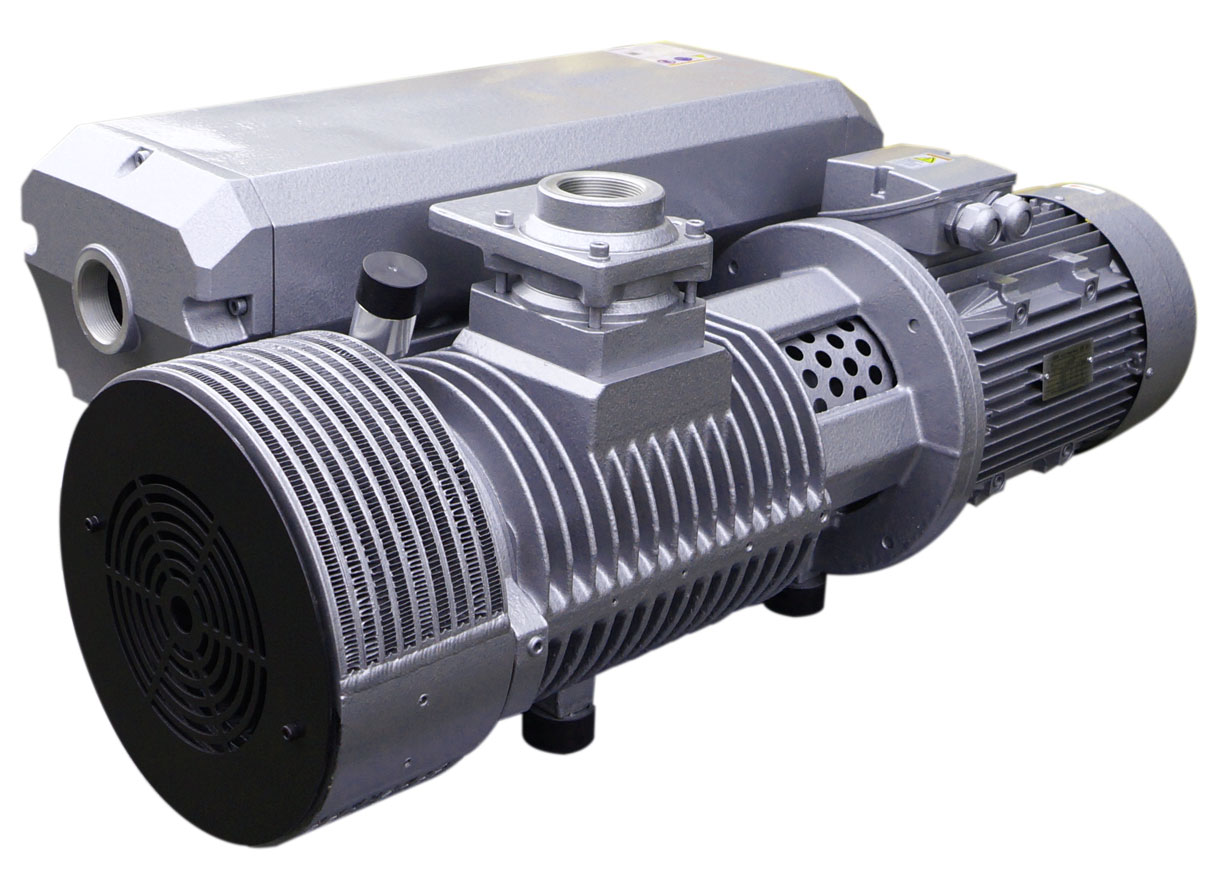

EV-0305
280 m3/h
0,08 mbar
5,5 kW -
EV-0450
448 m3/h
0,1 mbar
11 kW -
EV-0630
630 m3/h
0,1 mbar
15 kW
