FPM Seal with Support Ring
INFICON CF quality fittings are manufactured according to ISO 3669 and the latest TS/ ISO 3669-2 standard. INFICON Ultra high vacuum fittings are designed for applications down to 1 x 10-12 mbar and bakeout temperatures up to 400°C.
BENEFITS
- World wide logistics
- Design and measures follow strictly international respected standards
- 2011/65/EU RoHS compliant
Part Number
| Ordering Information | Art.No. |
|---|---|
| Viton seal with centering ring DN 250 CF | 213-397 |
Specifications

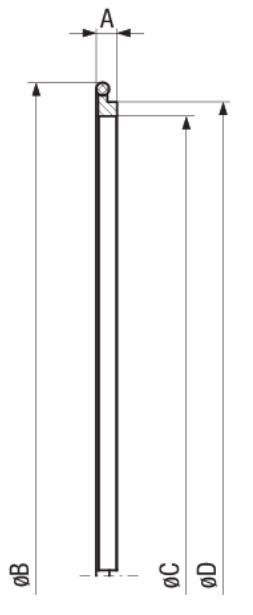

| Type | DN 250 CF |
|---|---|
| Dimension A | 5 mm |
| Dimension B | 266,5 mm |
| Dimension C | 248,3 mm |
| Dimension D | 256,2 mm |
| Set of: | 1 pcs. |
| Seal: | FPM |
| Support ring: | Aluminum 6082/- |
