EVSC series

The EVSC-series Side Channel Blowers are designed for vacuum and pressure use.

Eurovacuum EVSC-series blowers are Dry running and non-contact blowers that have a long life between service. They are World Wide used in many applications that require a inlet volume flow below 2.500 m3/h and a differencial pressure of up to 780 mbar. These blowers are reliable, have low maintenance costs and low in investment costs, this makes them the number one choice in the World .

Working principle

The gas is taken in through the inlet. As the gas enters the side channel, the rotating impeller imparts velocity to the gas in the direction of rotation. Centrifugal force in the impeller blades accelerates the gas outward and the pressure increases. Every rotation adds kinetic energy, resulting in the further increase of the pressure along the side channel. The side channel narrows at the rotor, sweeping the gas off the impeller blades and discharging it through the outlet silencer where it exits the side channel blower.

EVSC-series product line

•

  EVSC-S23A3

  105 m³/h
  +130 / -120 mbar
  0,4 kW (3 phase)
•

  EVSC-S40B3

  145 m³/h
  +90 / -90 mbar
  0,55 kW (3 phase)


•

  EVSC-S41A1

  145 m³/h
  +160 / -150 mbar
  0,8 kW (1 phase)


•

  EVSC-S45A1

  180 m³/h
  +210 / -170 mbar
  1,1 kW (1 phase)


•

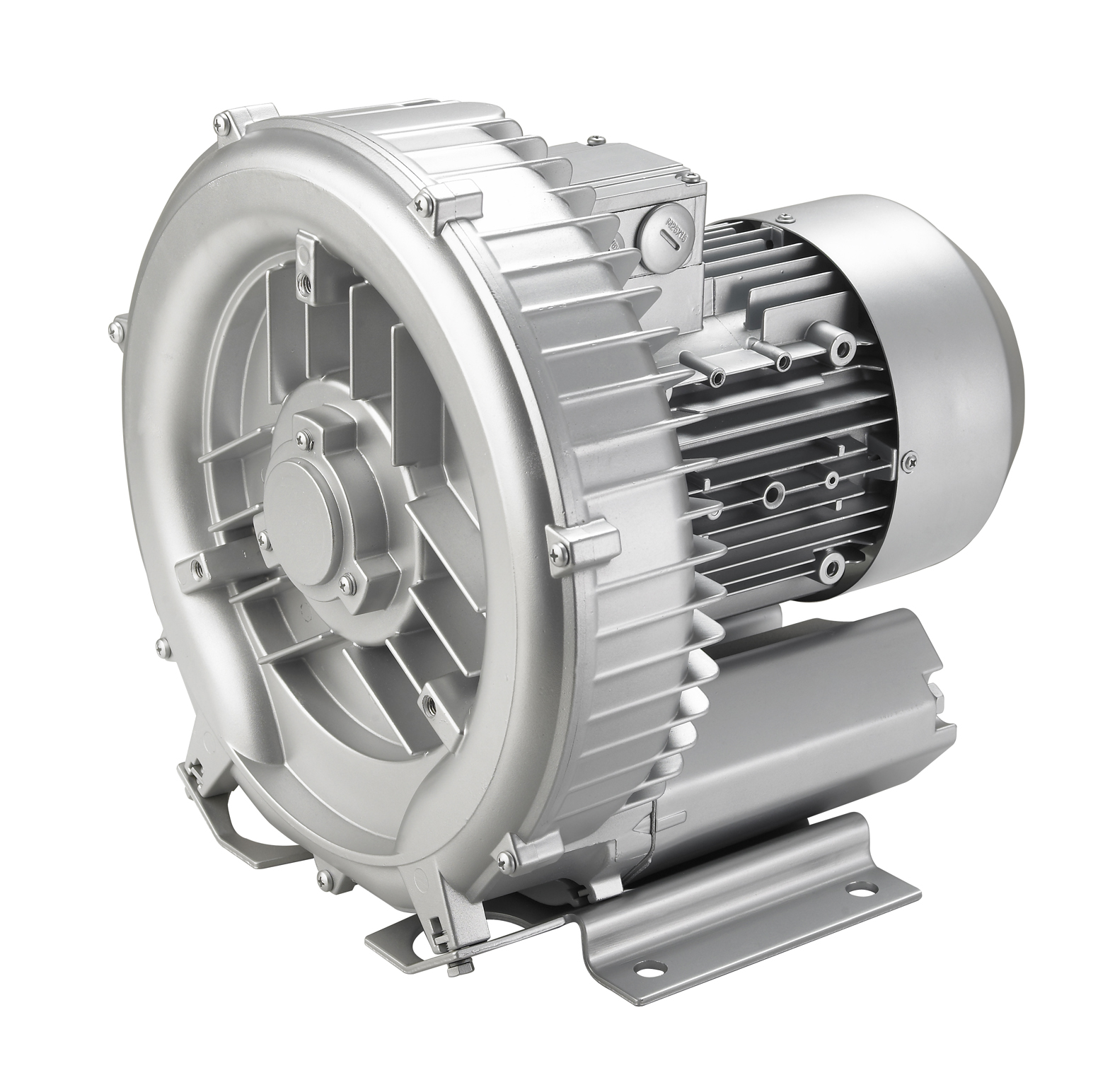

  EVSC-S52B3

  210 m³/h
  +190 / -200 mbar
  1,5 kW (3 phase)


•

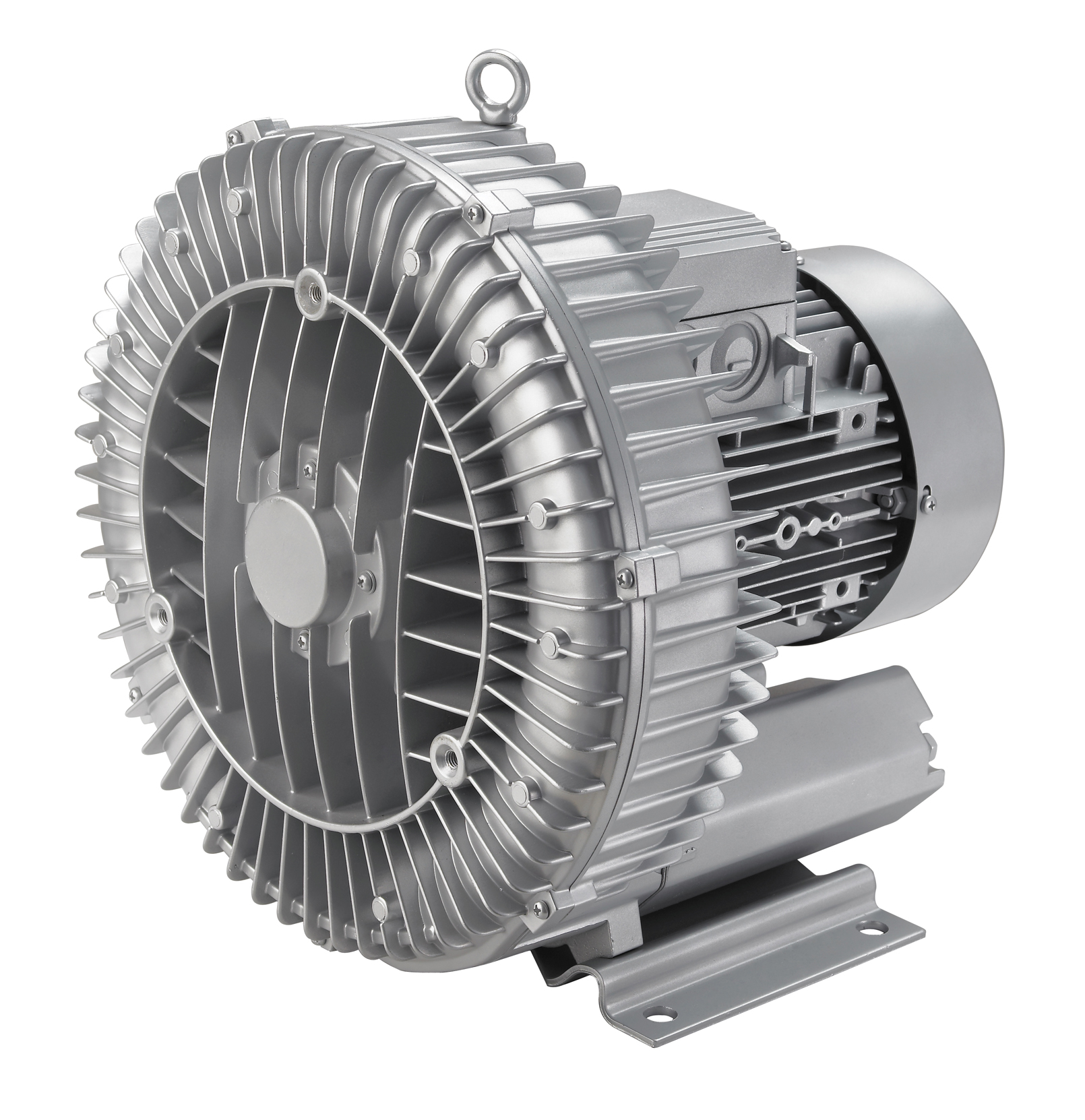

  EVSC-S71A1

  318 m³/h
  +190 / -190 mbar
  2,2 kW (1 phase)


•

  EVSC-S71B3

  318 m³/h
  +170 / -180 mbar
  2,2 kW (3 phase)


•

  EVSC-S72B3

  318 m³/h
  +250 / -260 mbar
  3,0 kW (3 phase)


•

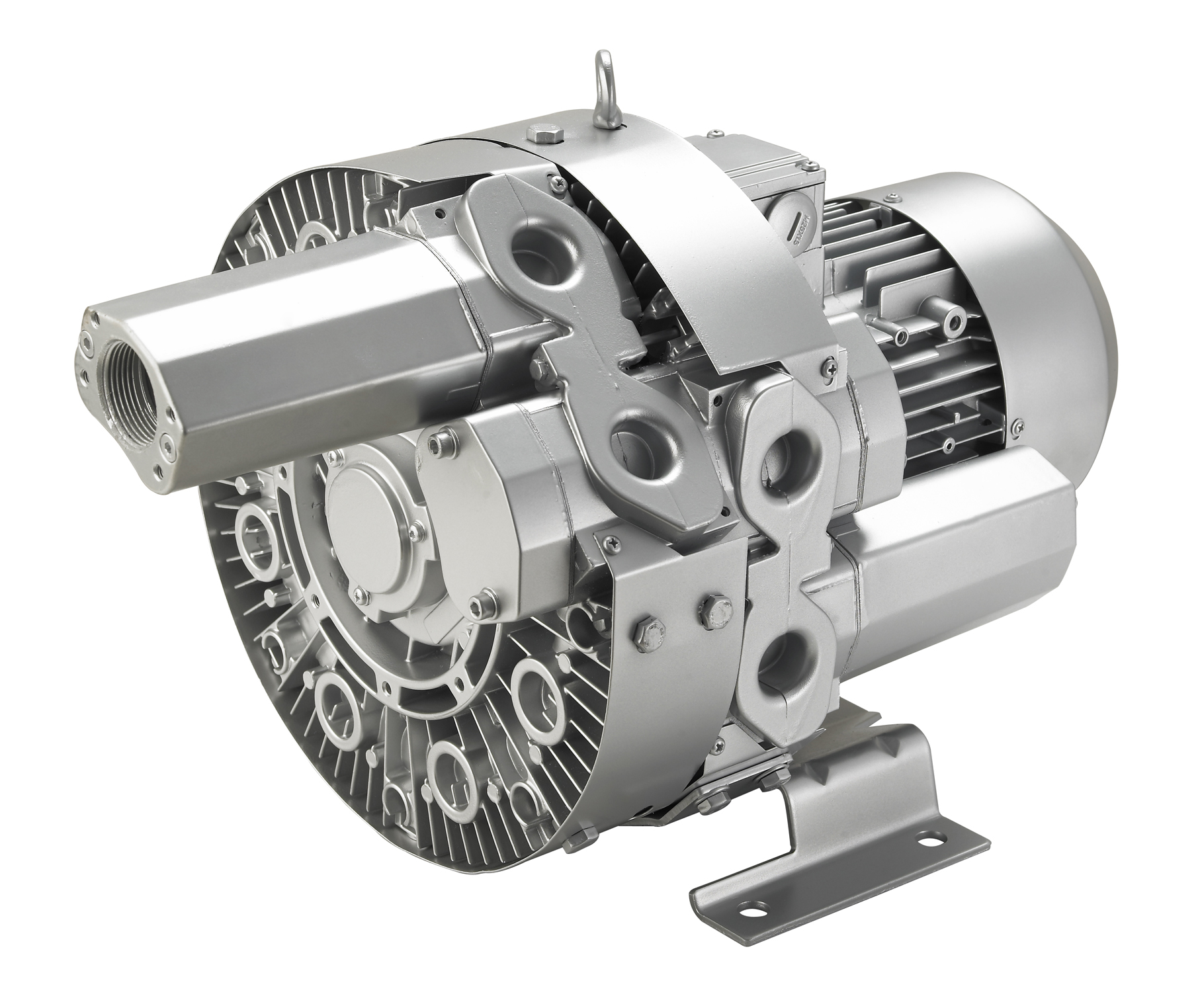

  EVSC-D73B3

  320 m³/h
  +500 / -440 mbar
  5,5 kW (3 phase)



•

  EVSC-D74B3

  320 m³/h
  +570 / -440 mbar
  7,5 kW (3 phase)



•

  EVSC-D91B3

  1.110 m³/h
  +370 / -410 mbar
  16,5 kW (3 phase)



•

  EVSC-D92B3

  1.110 m³/h
  +500 / -440 mbar
  20 kW (3 phase)
